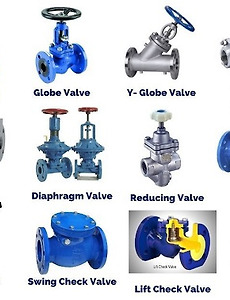

CATEGORY & TYPES OF VALVES
▣ CATEGORY ▶ Stop (Isolation) Valves : shut-off service - Gate, Globe, Ball, Butterfly, Plug, Diaphragm ▶ Regulating Valves : to control flow, pressure, or temperature - Globe, Needle, Butterfly, Ball, Plug, Diaphragm ▶ Backflow Prevention : self-actuating ▶ Pressure Relief Devices : Relief Valve, Rupture Disc ▣ TYPE ▶ GATE VALVE § Wedge Type : Disc as figure like wedge - Solid Wedge Gate Valve ..
2024. 1. 7.
Finding details of BOM on ISO metric DWG
Normally, in BOM (Bill Of Material) on ISO DWG, All information of materials are included. BUT You can see as much as you know. BASIC 1) PIPE: Different type based on the manufacturing method, etc. like SMLS, WLDD 2) Valve: Class, End type, Materials, Code, etc. like API 300#, RF, CAST CS 3) Fitting: End type, Schedule, Code, etc. like ELL 90, THRD 3000# 4) Flange: Type, Class, Materials, Code, ..
2023. 11. 24.
